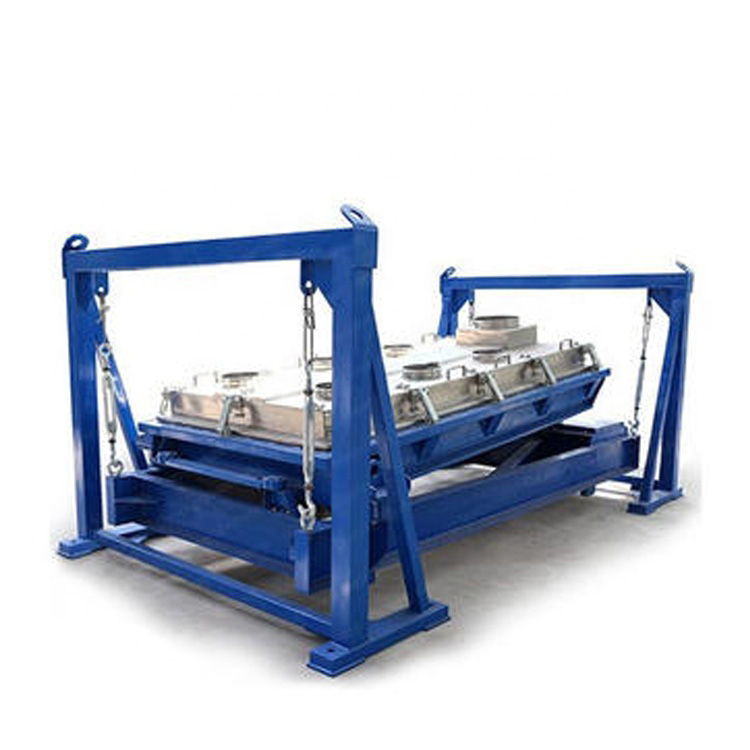

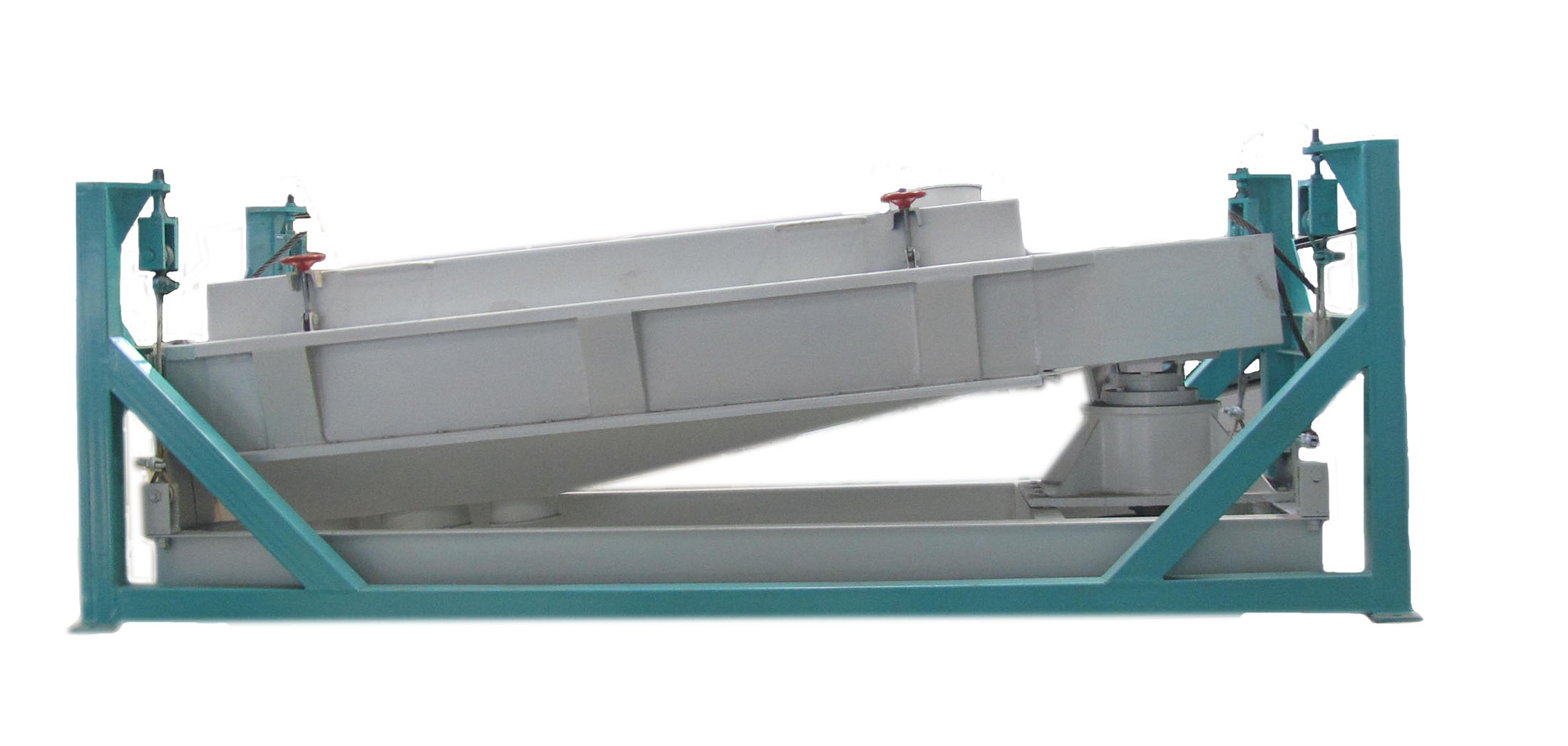

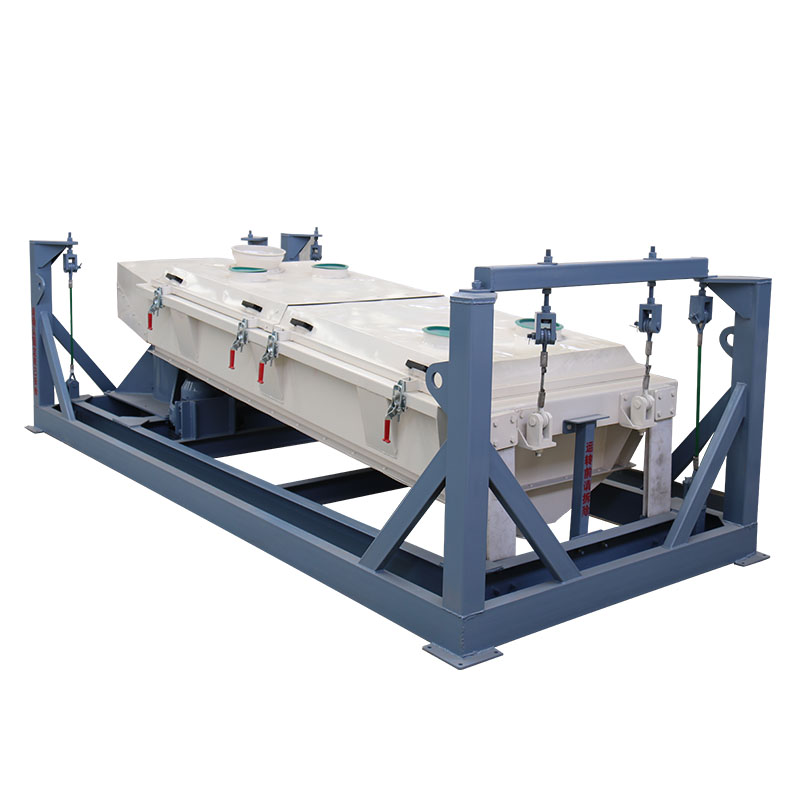

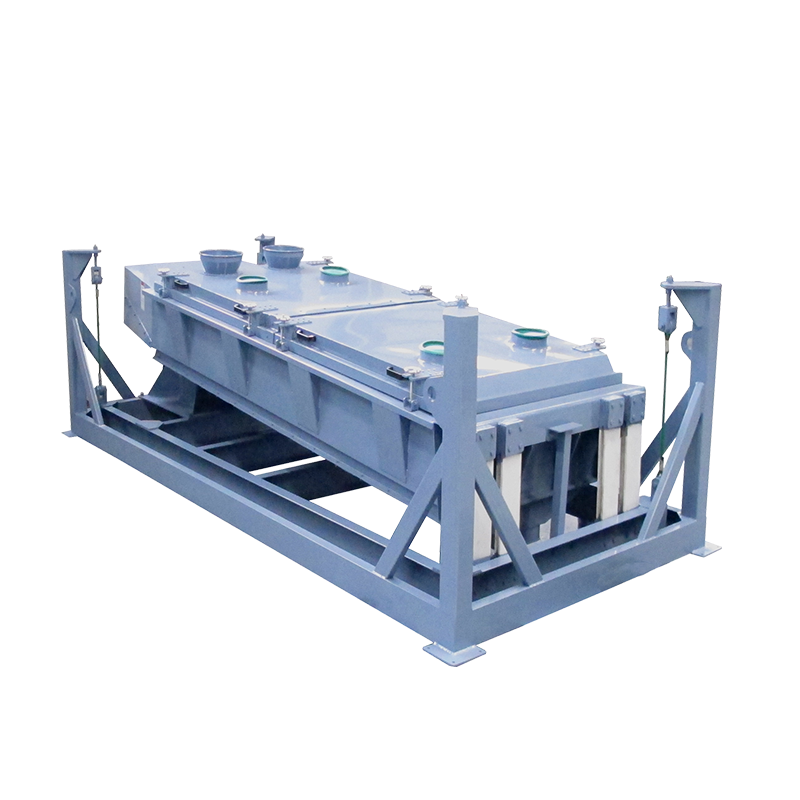

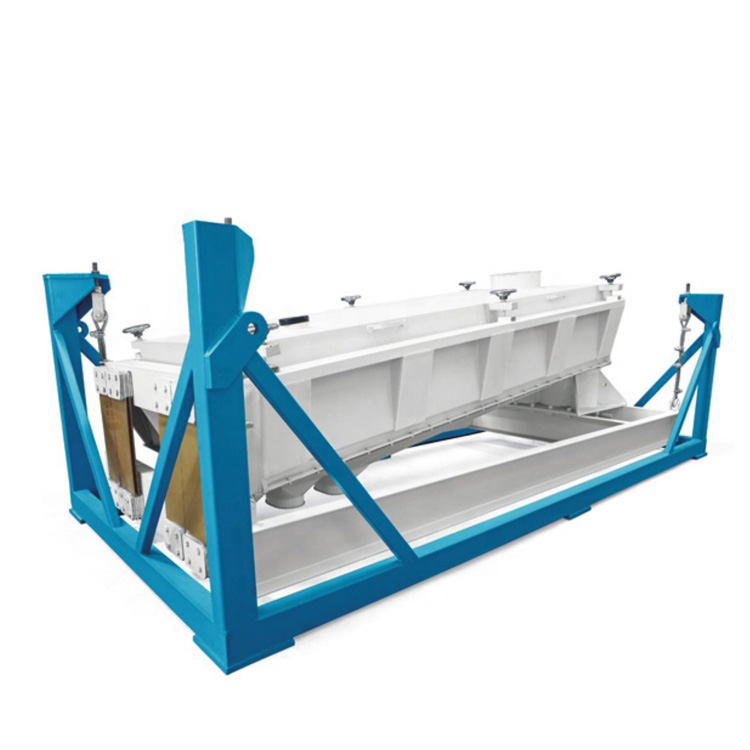

RA series plane rotary screen is one of the main products of Shanghai Ruang ultrasonic equipment Co., Ltd., which can also be called rotary screen, reciprocating screen, precision screen, etc. It is a new type of high-precision screening machine independently developed after introducing and absorbing the advanced screening machine technology in Europe and America. The machine has the advantages of high screening efficiency, high screen utilization, small floor space, convenient installation and use, large processing capacity, easy to be used in assembly line production, no pollution and low noise. Moreover, the cost after localization is much lower than that of similar imported products, which completely solves the problems of relying too much on imports in this field in the past.
Working Principle
The plane rotary screen adopts the plane rotary vibrating screen to vibrate up and
down, and there is automatic cleaning equipment under the screen. Compared with the
traditional linear screen, it improves the service life of the screen, has low noise and
large screening area, improves the efficiency from 93 ~ 95 to 99, and has high
screening accuracy.

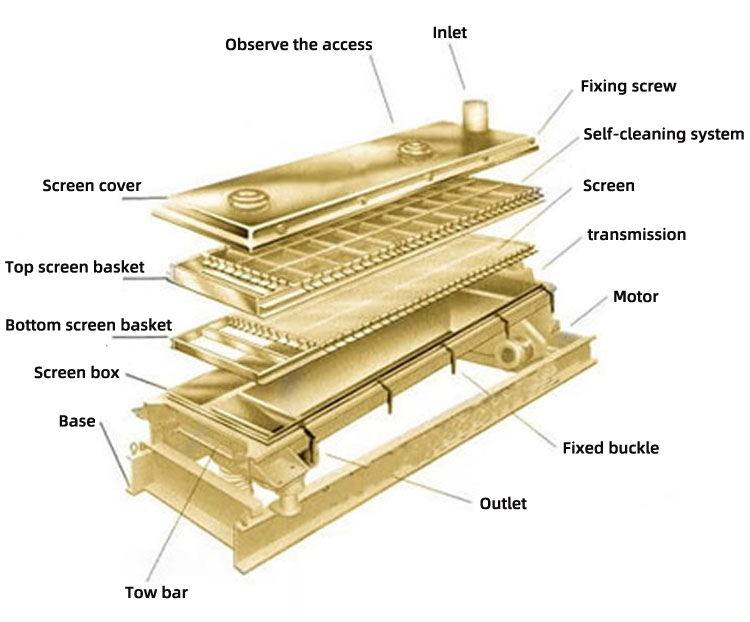

Equipment Details
Equipment Parameter
| 层数 layer | 型号model | 尺寸 size(mm) | 功率 power(kw) | 转速 speed(rpm) |
| 1 | RA1014 | 1000*1400 | 1.5 | 960 |
| RA1021 | 1000*2100 | 1.5 | ||
| RA1030 | 1000*3000 | 1.5 | ||
| RA1521 | 1500*2100 | 1.5 | ||
| RA1530 | 1500*3000 | 2.2 | ||
| RA1536 | 1500*3600 | 5.5 | ||
| RA1236 | 1200*3600 | 5.5 | ||
| 2 | RA1021 | 1000*2100 | 1.5 | 960 |
| RA1030 | 1000*3000 | 4 | ||
| RA1521 | 1500*2100 | 4 | ||
| RA1836 | 1800*3600 | 7.5 | ||
| RA1530 | 1500*3000 | 7.5 | ||
| RA1536 | 1500*3600 | 7.5 | ||
| 3 | RA-1021 | 1000*2100 | 5.5 | 960 |
| RA-1630 | 1000*3000 | 5.5 | ||
| Ra-1836 | 1800*3600 | 7.5 | ||
| RA-2050 | 2000*5000 | 11 |
