High frequency screen

Scope of application:

chemical industry, food industry, pharmaceutical industry, metallurgical industry, public hazard treatment

Materials:

yeast, glaze, liquid coating, wastewater treatment, filtered grease, slurry, wastewater,

waste oil, coating, ink, color paste, paint, latex paint, aluminum powder; Starch,

soybean milk, fruit juice, beverage, dairy mouth, condiment; Pulp, waste liquid, Chinese

 and Western medicine liquid

Telephone:

               021-34717779 /13621820452

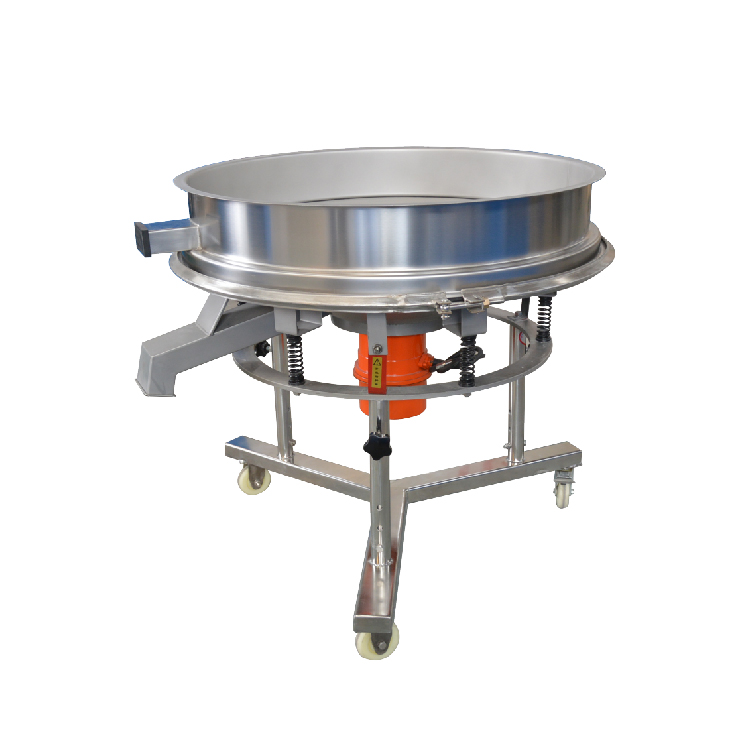

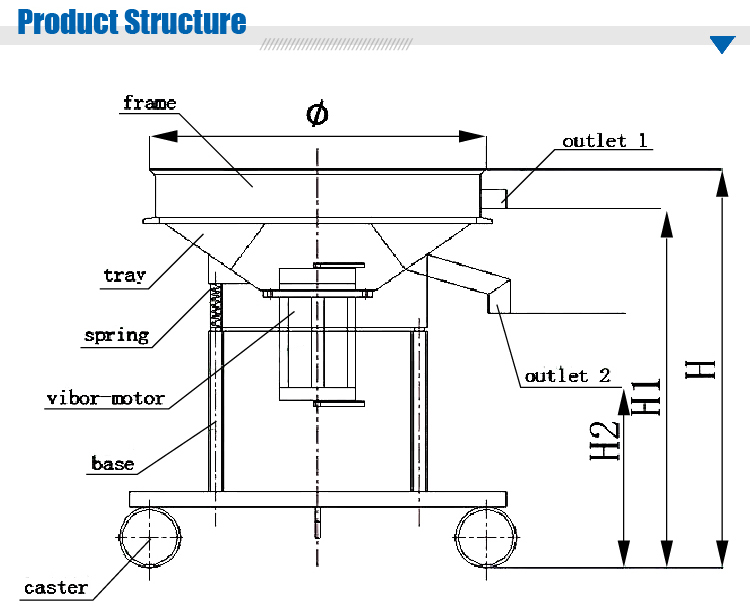

High frequency screen is also called high frequency vibrating screen. High frequency vibrating screen (high frequency screen) is composed of exciter, screen frame, frame, suspension spring, screen mesh and other components.

The high-frequency vibrating screen adopts cylindrical eccentric shaft exciter and

eccentric block to adjust the amplitude. The material screen has long flow line and

many screening specifications. It has the characteristics of reliable structure, strong

exciting force, high screening efficiency, low vibration noise, durability, convenient

maintenance and safe use. The high-frequency vibrating screen is applied to the

product classification of food, medicine, chemical industry, new energy and other

industries.


Working Principle


Because the high frequency vibrating screen (high frequency screen) adopts high

frequency, on the one hand, it destroys the tension of the material surface and the

high-speed oscillation of fine materials on the screen surface, accelerates the

separation of high-density materials and increases the probability of contact between

materials smaller than the separation particle size and the screen hole. This results in

better separation conditions, so that the materials smaller than the separation particle

size, especially the particles with large specific gravity, can pass through the sieve hole

together with the slurry and become the products under the sieve.

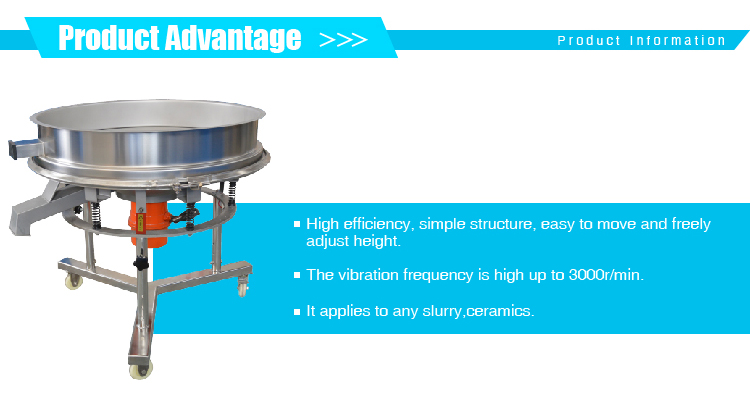

Product Features

1.The frequency vibrating screen has high screening accuracy and efficiency, and can be used for any powder, particle and slurry;

2. The mesh hole of the frequency vibrating screen is not blocked, the powder is not

flying, and the vibration frequency is high, up to 3000 times / min, which has obvious

screening effect on fine-grained and high viscosity materials; The equipment can

effectively handle solid-liquid mixed materials and quickly realize solid-liquid

separation

3. The high-frequency vibrating screen has a unique screen structure, which is

convenient and fast to install. It only takes 3 ~ 5 minutes. It has the advantages of

simple operation, convenient cleaning, no dead corner and no residue;

4. Series high frequency vibrating screen has no mechanical action and simple

maintenance. Except for the motor part, the rest parts are made of all stainless steel;

5. High efficiency, small amplitude, low noise and high screening frequency. Different

from the principle of ordinary screening equipment, because the high-frequency screen

 adopts high frequency, on the one hand, it destroys the tension of liquid surface and

 the high-speed oscillation of fine materials on the screen surface, accelerates the

separation of high-density (specific gravity) useful substances, and improves the

probability of contact between particles smaller than separation and screen holes. So

as to create better separation conditions, so that the materials smaller than the

separation particle size, especially the particles with large specific gravity, pass through

 the sieve hole together with the liquid to become the products under the sieve;

6. Each high-frequency vibrating screen is equipped with a movable frame, which can

be moved freely in the workplace, and the height can be adjusted. There is no need for

complex installation, simple operation and not easy to be damaged.

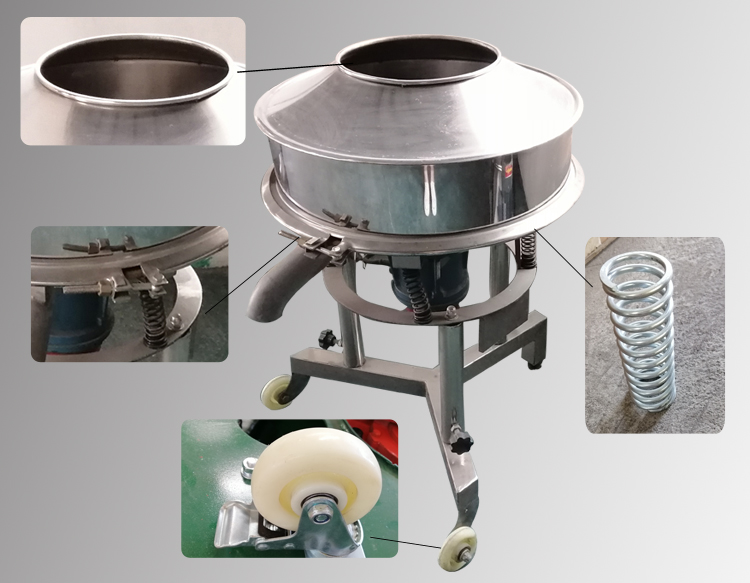

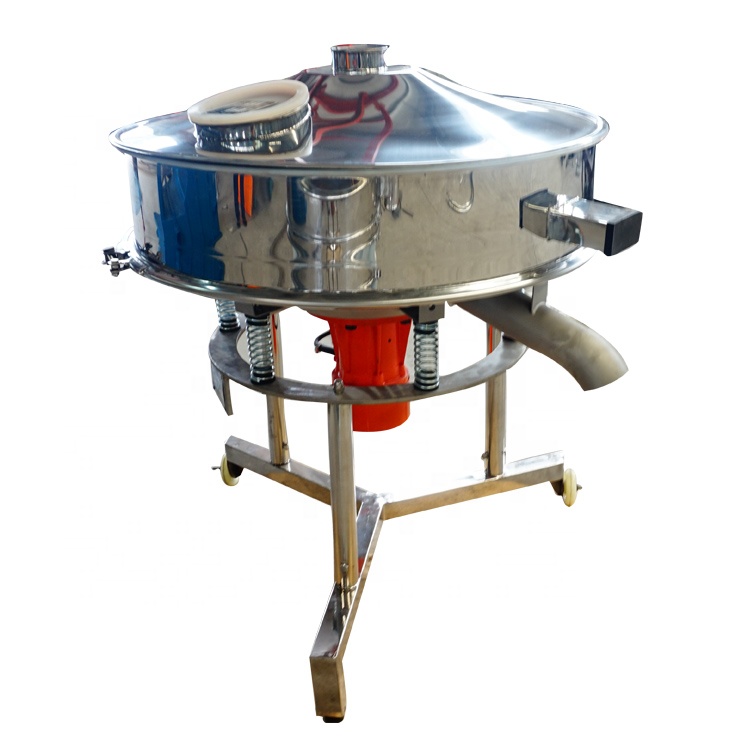

Equipment Details



Equipment Parameter

型号

model

外框直径 Outer frame diameter(mm)筛面直径Screen surface diameter(mm)

筛网目

Mesh number

layer

频率Frequency(min)

功率Power

(KW)

RA-GPS-6006005502-80030000.55
RA-GPS-8008007602-80030000.75
RA-GPS-100010009502-80030001.1
RA-GPS-1200120011502-80030001.5
