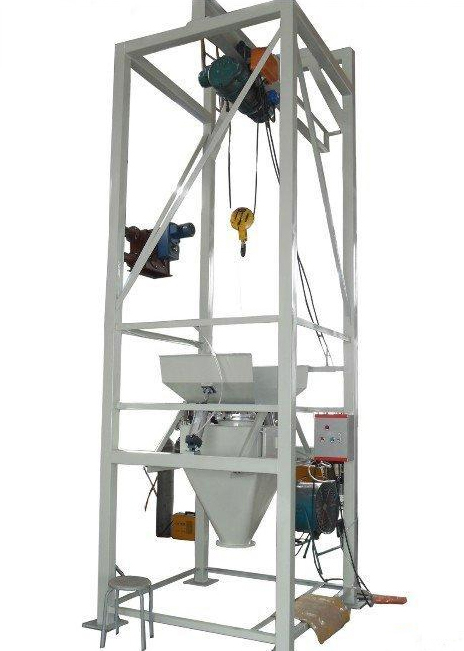

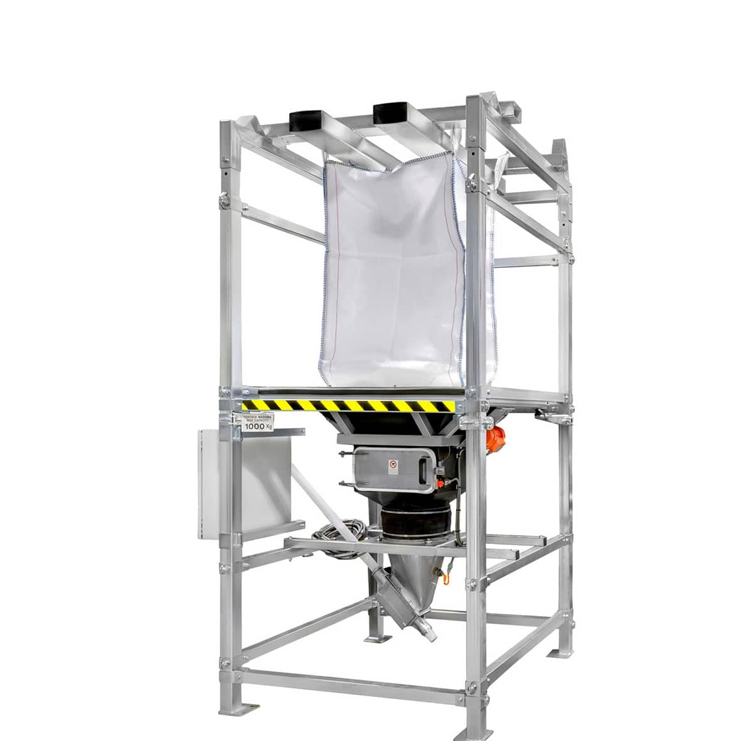

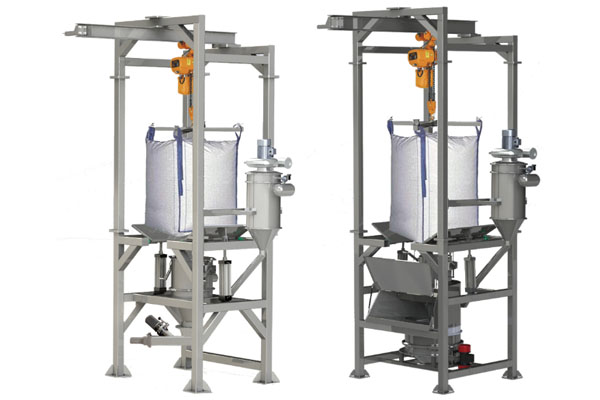

Ton bag unloading station

Tel:

   021-34717779/13621820452


Product introduction:

Ton bag unpacking station is mainly to solve the environmental impact of dust flying in the

process of bag opening and reduce the heavy physical labor of operators. Modern enterprises

gradually replace the traditional manual bag opening work with mechanical bag opening

system.The system not only effectively protects the production environment, reduces the

working intensity of workers, but also improves the production efficiency, and solves the

problem of caking and difficult discharge of large bags due to moisture absorption during bag

opening.



principle of operation:

Ton bag unpacking station is to lift ton bags of materials by  electric hoist. The corresponding fixing bracket and weighing frame are connected with sensors, and the weight signal of

materials is transmitted to the electrical box, which controls the operation of the whole machine. The lifting cylinder on the  weighing rack hooks the corner of the packaging bag.External  signals and sensor signals are transmitted to the electric box, which controls the start, stop, rotating speed and cylinder  lifting of the feeding motor through the programmed program.




 System characteristics

1. The bag opening station is simple in structure and easy to operate.

2. The tapping device can ensure the smooth discharge of materials from the big bag.

3. Fully automatic operation, improve production efficiency and reduce labor intensity.

4. Closed bag opening can prevent dust flying, improve working environment and reduce production cost.

5. Optional bag opening, beating, crushing, magnetic separation and other integrated design, compact structure and convenient operation.

6. Pneumatic or electric control mode can be provided to realize remote monitoring.

7. Applicable working conditions: big bags of packaging materials with poor fluidity, easy moisture absorption and caking.



Device composition

This system is composed of electric hoist lifting device, equipment support, pneumatic entrainment device, pneumatic beating device, cache bin, pure pneumatic controller and auxiliary connection parts.Parts in contact with materials can be made of 316L stainless steel and 304 stainless steel, and brackets are made of 304 stainless steel /Q235 carbon steel, with matte surface and intact protection. The equipment feet (four pieces) are perforated with stainless steel plates and fixed to the ground with expansion bolts.



The operation is as follows

1. Hang the bags at four corners of a ton bag on the cross hook.

2.  Lift the ton bag to a proper position by the electric hoist.

3. Move the electric hoist horizontally to the left to the center of the shelf.

4. Drop the ton bag to the massage plate.

5. Lock the diaphragm valve to the appropriate size.

6. Open the discharge port of the ton bag and then slowly open the aperture valve.

7. Turn on the switch button of dust collector and then turn on the pneumatic massage plate to push the ton bag to make the material flow smoothly.

8. Slowly lift the empty bag after unloading, then put it away to one side, and then turn off the dust collector and all its power and pneumatic sources.

9. Aperture valve: control the material feeding speed, slide to the left to reduce the size of the inner hole, otherwise enlarge the inner hole.

10. Dust collector: dust will be generated during blanking, and dust raised during blanking can be collected by centrifugal fan dust collector.

Ton bag unpacking station

Application: food industry, pharmaceutical industry, metallurgy, mining industry and chemical industry.

material : flavors and fragrances, monosodium glutamate, adsorbent, catalyst, graphite, rouge, blush, polyethylene, polypropylene, polyoxyethylene, fertilizer, veterinary drugs, feed, premix, additive, washing powder, salt, monosodium glutamate, chicken essence, sugar and seeds.

                                            Telephone:021-34715308

                                     17317625400


                        Equipment details

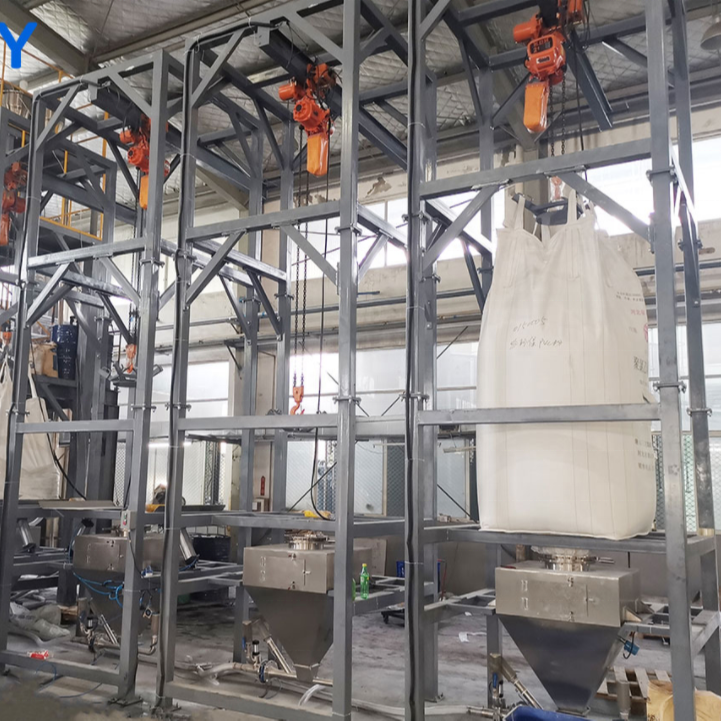

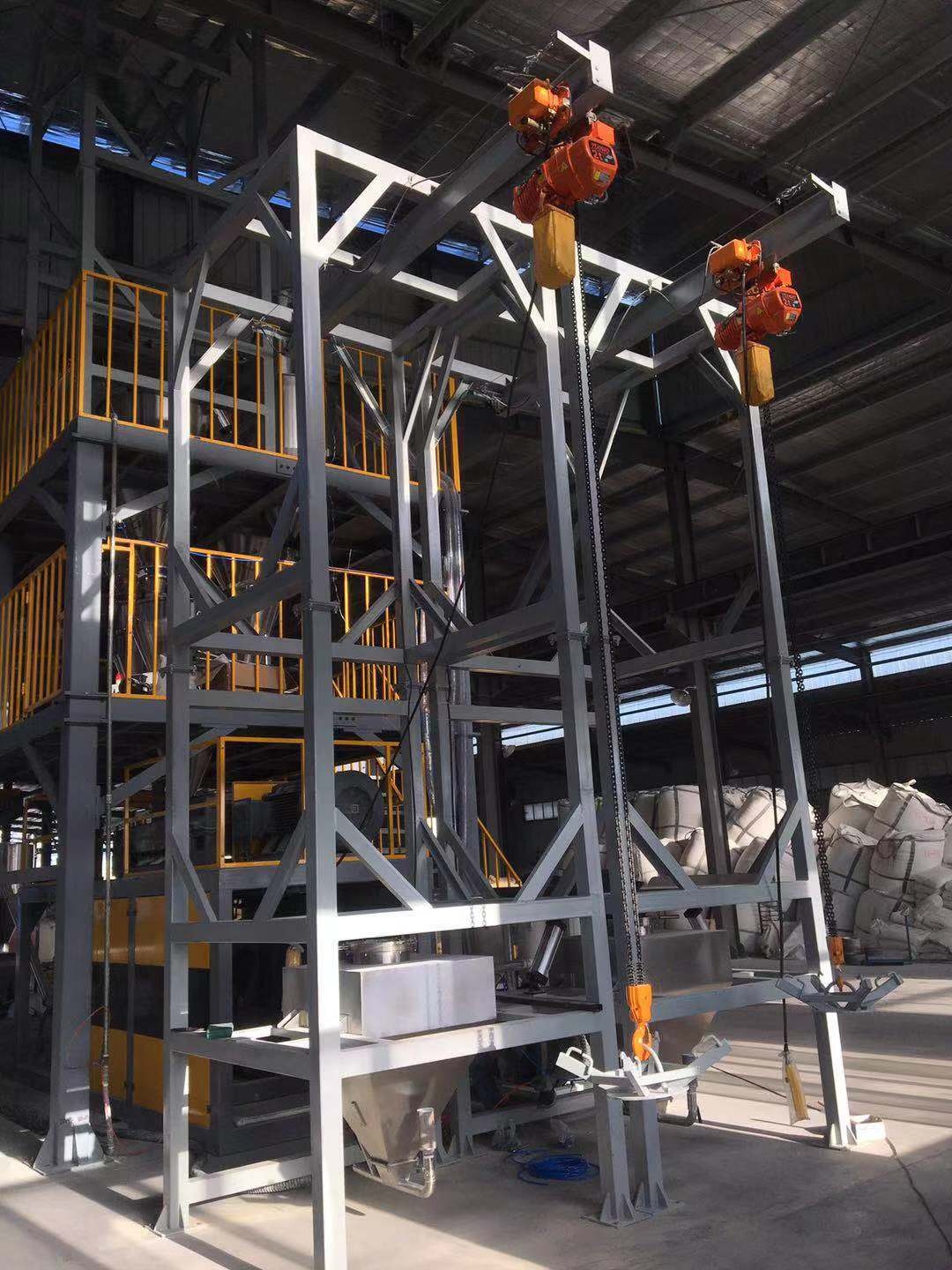

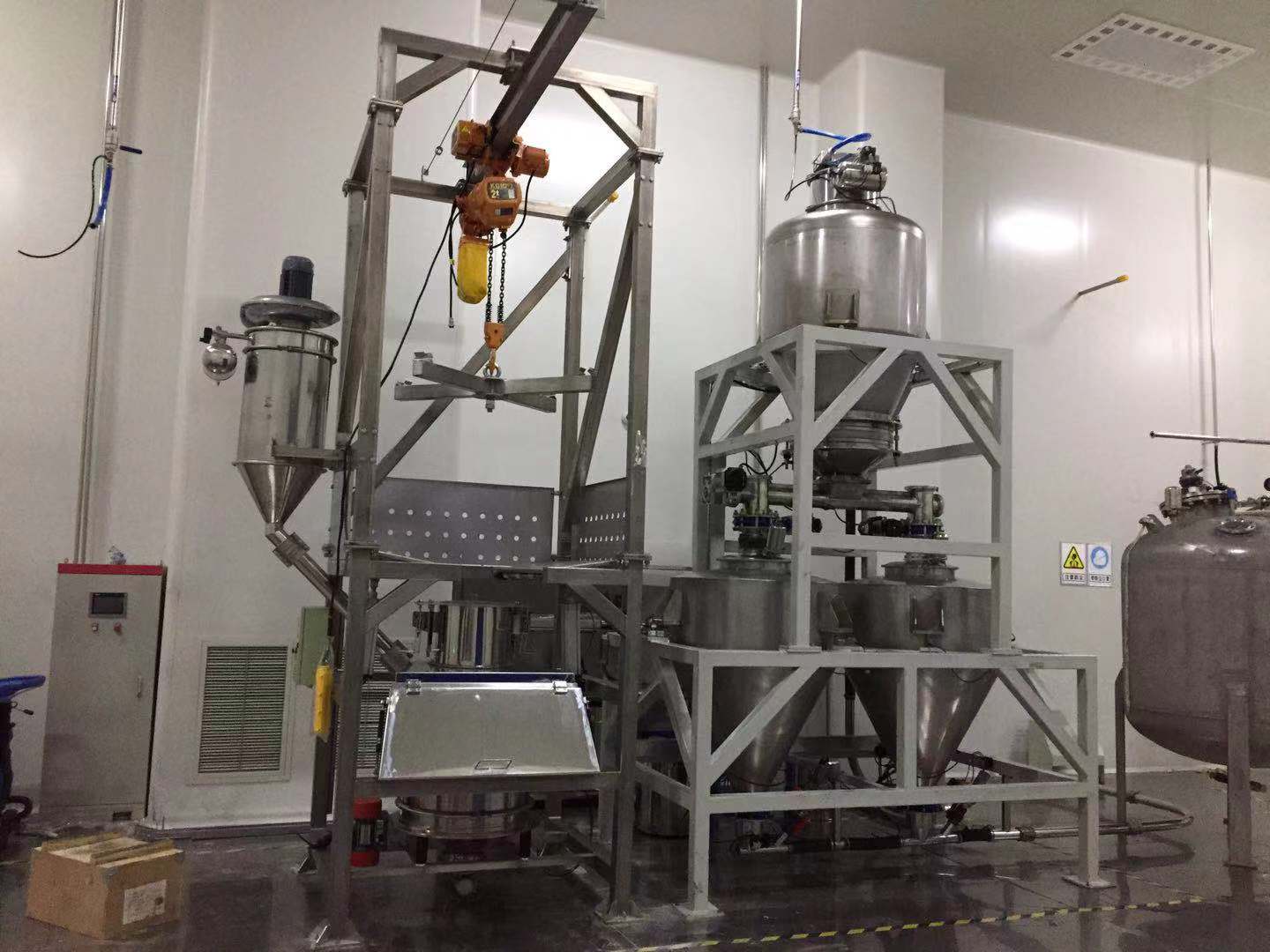

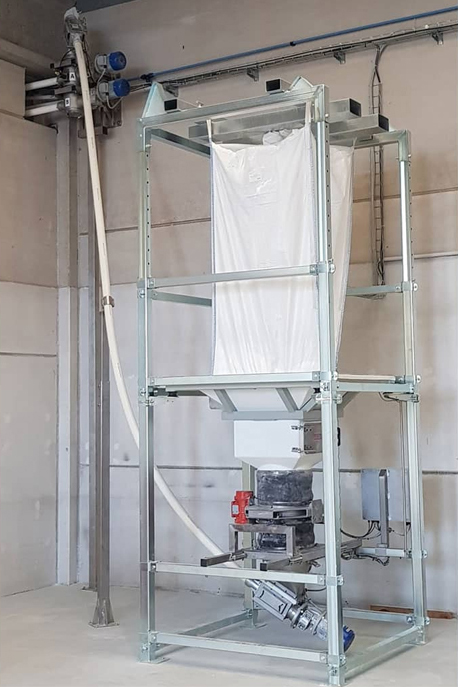

                                Case Engineering
