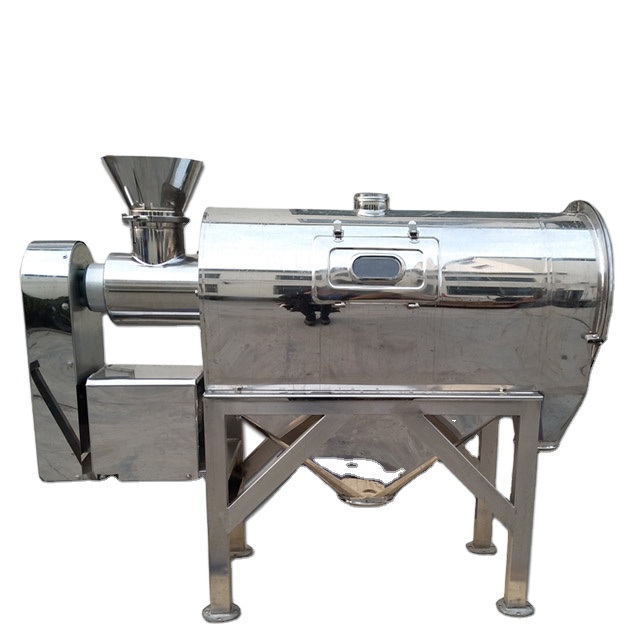

RA cyclone screen is a new type of fine powder screening equipment produced by our company with the introduction of German advanced technology. The screen is automatically cleaned without blocking the mesh, with high screening efficiency, good sealing performance, no dust overflow, and has the function of crushing powdery materials after agglomeration.

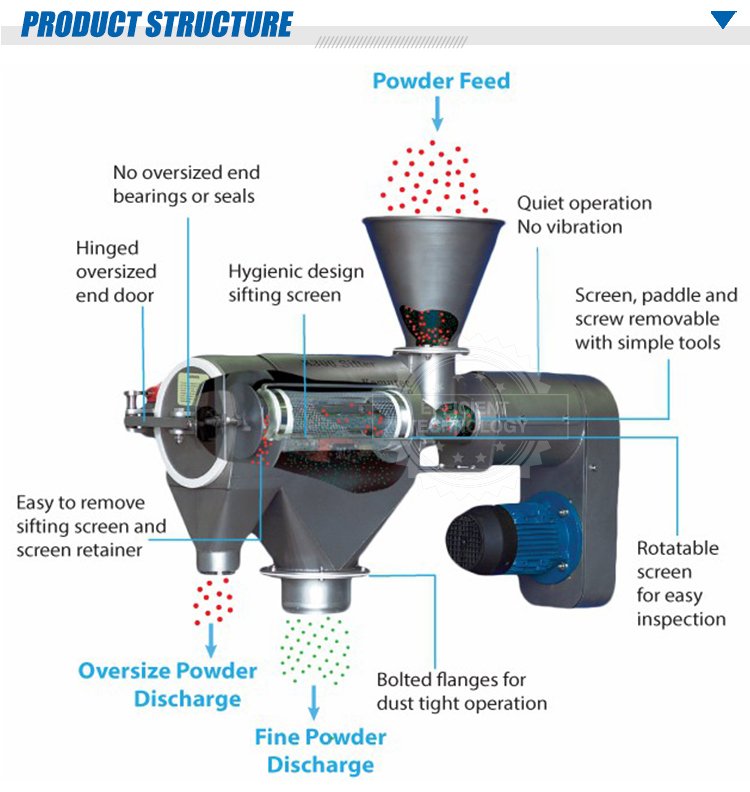

Working Principle
The airflow screen discards the traditional operation principle of gravitational potential energy and opens up a new way of screening work by carrying fluid kinetic energy. It uses high-speed airflow as the carrier in a closed state to make the fully diffused powder particles spray into the screen with enough kinetic energy to achieve the purpose of rapid classification.

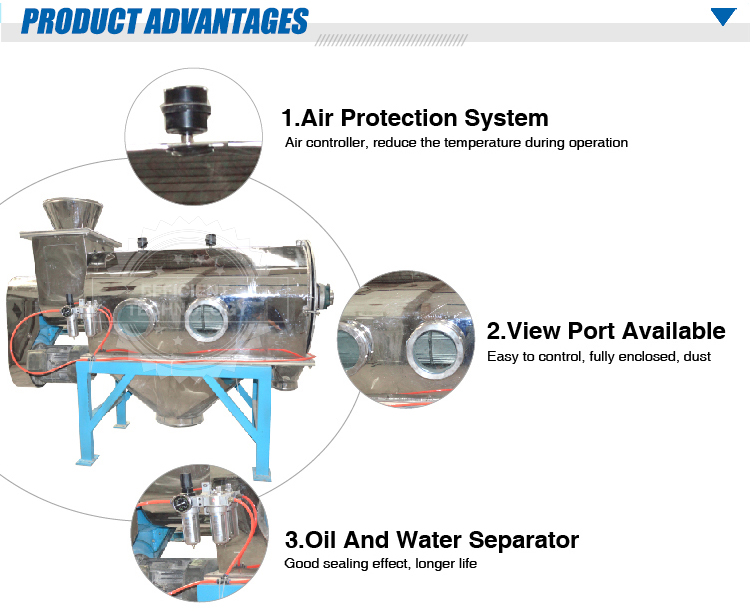

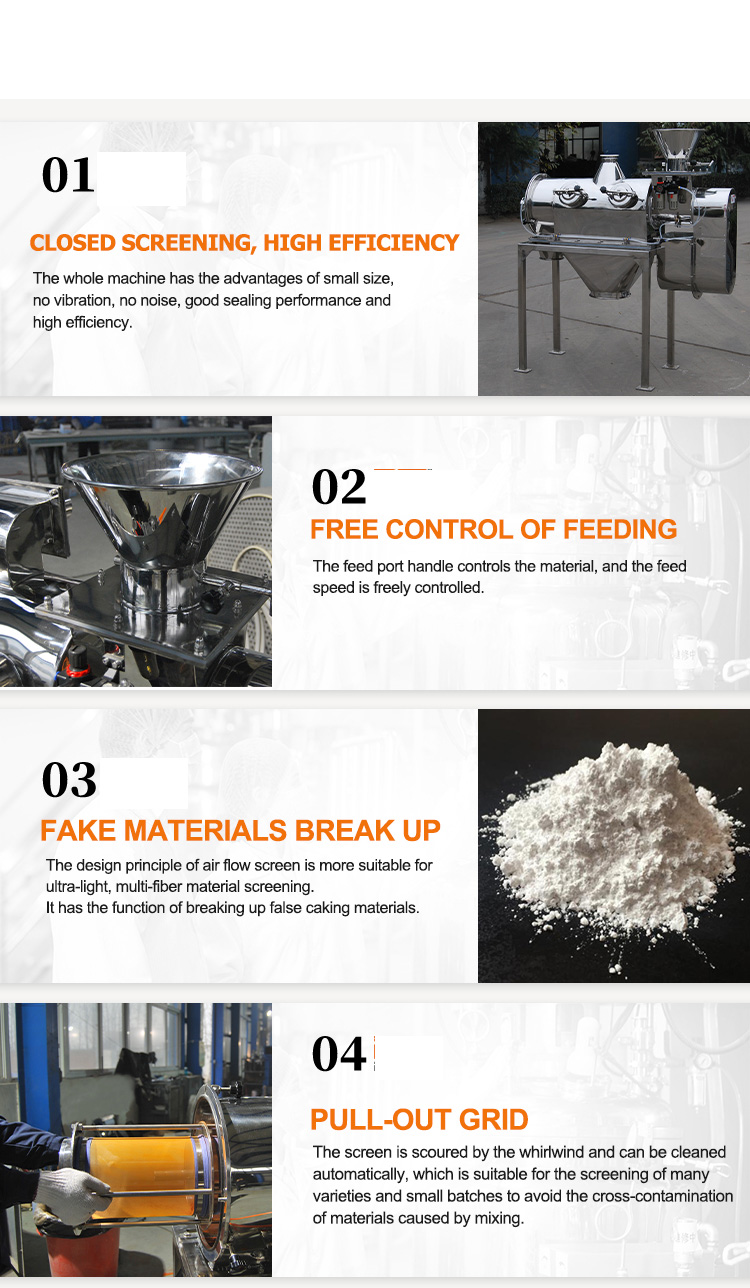

Equipment Details
Product Parameter
Specification and model | RA-190 | RA-300 |
Production Capacity | 60-800kg | 100-2000kg |
Number of Screens | 60Mesh-400Mesh | 60Mesh-400Mesh |
Motor Power | 2.2kw | 3kw—4Kw |
Overall Dimension | 1680×520×1380mm | 1890×670×1460mm |
Net Weight | 430kg | 660kg |
