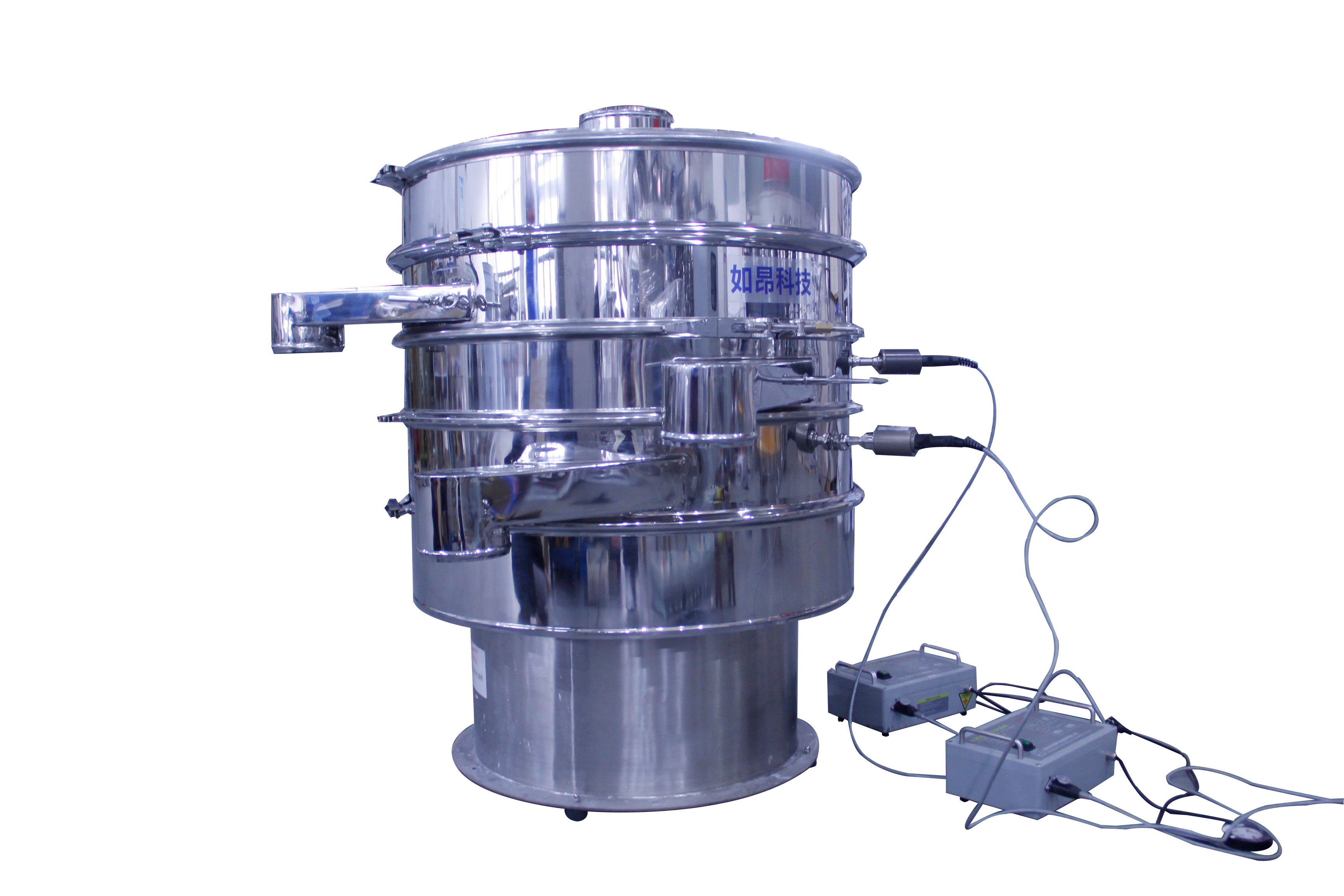

Working Principle
The ultrasonic screening machine consists of three parts: ultrasonic generator,
transducer and resonance ring. The high-frequency electrical oscillation generated by
the ultrasonic generator (power supply) is converted into high-frequency ultrasonic
waves by the transducer. These ultrasonic waves are transmitted to the resonance ring
to resonate the resonance ring, and then the resonance ring transmits the vibration
evenly to the screen surface. The materials on the screen are subjected to
low-frequency three-dimensional vibration and superimposed with ultrasonic vibration, which can not only effectively prevent mesh blockage, but also improve the screening
yield and quality, and solve the problems of strong adsorption, easy agglomeration,
high static electricity, high density, Screening problems such as light weight and
specific gravity. Achieve big results in performance. RA series ultrasonic vibrating
screen has high screening accuracy, and the output can be increased; industrial fine
production screening needs above 600 mesh! The working principle of the ultrasonic
vibrating screen is to superimpose a high-frequency vibration on the traditional
vibrating screen to increase the acceleration of the material, effectively solve the
adsorption of the material on the screen, and let the material pass through the screen
quickly.
Equipment parameter
| Model number | Frame diameter | Effective screen diameter | Mesh number | layers | Power(kw) | Contour dimension(mm) |
| RA-CXZS-106 | φ600 | 560 | 2-800 | 1-5 | 0.55 | 600*720 |
| RA-CXZS-108 | φ800 | 760 | 0.75 | 800*820 | ||
| RA-CXZS-110 | φ1000 | 950 | 1.1 | 1000*900 | ||
| RA-CXZS-112 | φ1200 | 1150 | 1.5 | 1200*1020 | ||
| RA-CXZS-115 | φ1500 | 1430 | 2.2 | 1500*1160 | ||
| RA-CXZS-118 | φ1800 | 1700 | 3 | 1800*1320 |
Engineering case 1
Anhui ***** Technology Co., Ltd.
Ceramic powder sieving 600 mesh 800 mesh requires fine sieving, the specific gravity is lighter, and the output requires 1t/h
Ruang Ultrasonic Vibrating Screen Model RA-XZS-100 Model Vibrating Screen Meets the screening requirements as a whole RA Series Ultrasonic Vibrating Screen Powder and granular materials can basically meet the screening requirements The output refers to the specific model
Ruang ultrasonic vibrating screen has been successfully used in silicon carbide, electromagnetic powder, negative electrode material, laser powder, carbon powder, powder coating, alloy powder, molybdenum powder, stainless steel powder, tungsten powder, cobalt powder, nickel powder, quartz powder, malt powder , screening of spore powder, etc.
Engineering case 2
Xi'an*** Co., Ltd.
The 3D printing metal powder is screened with 325 meshes, and the specific gravity of the fine screening is required to be heavier, and the output is required to be 3t/h, and the screening is equipped with an explosion-proof device.
Ruang Ultrasonic Vibrating Screen Model RA-XZS-108 Model Vibrating Screen Meets the screening requirements as a whole RA Series Ultrasonic Vibrating Screen Powder and granular materials can basically meet the screening requirements. The output refers to the specific model
Ruang ultrasonic vibrating screen has been successfully used in silicon carbide, electromagnetic powder, negative electrode material, laser powder, carbon powder, powder coating, alloy powder, molybdenum powder, stainless steel powder, tungsten powder, cobalt powder, nickel powder, quartz powder, malt powder , screening of spore powder, etc.
