Mining linear screen

Working Principle

The mining linear screen adopts advanced technologies at home and abroad such as

vibration motor excitation, rubber spring vibration reduction, high wear-resistant

material screen plate, sealed screen box and advanced self synchronous vibration

principle. It has the characteristics of long service life, low noise and high screening

efficiency. It is a kind of vibration screening equipment suitable for sinter, natural ore,

coke and other powdery materials.

Mining linear screen is mainly used in metallurgy, mining, coal, building materials,

electric power, chemical industry and other industries, especially in metallurgy industry.

 It is a common screening machine under blast furnace trough, coking plant and

concentrator

Product features

1.  Large processing capacity and high screening efficiency.

2. The vibrator adopts bearing thin oil lubrication and external block eccentric structure. It has the characteristics of large exciting force, small bearing load, low temperature and low noise. (bearing temperature rise is less than 35 °).

3. The overall disassembly and assembly of the vibrator is convenient for maintenanceand replacement, which greatly shortens the maintenance cycle. (it only takes 1 ~ 2 hours to replace the vibrator).

4. The side plate of the screen machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the cross beam and the side plate adopts torsional shear high-strength bolts, without welding, and the cross beam is easy to replace.

5. The screen machine adopts rubber spring to reduce vibration. Compared with metalspring, it has the advantages of low noise, long service life, stable passing through the commonvibration area, small dynamic load of each fulcrum of the screen machine and so on.

6. Flexible coupling is adopted for the connection between motor and vibration exciter,which has the advantages of long service life and small impact on motor.Mining linear screen is mainly used in metallurgy, mining, coal, building materials, electric power, chemical industry and other industries, especially in metallurgy industry. It is a common screening machine under blast furnace trough, coking plant and concentrator.

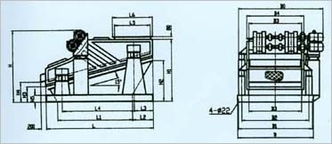

Equipment details

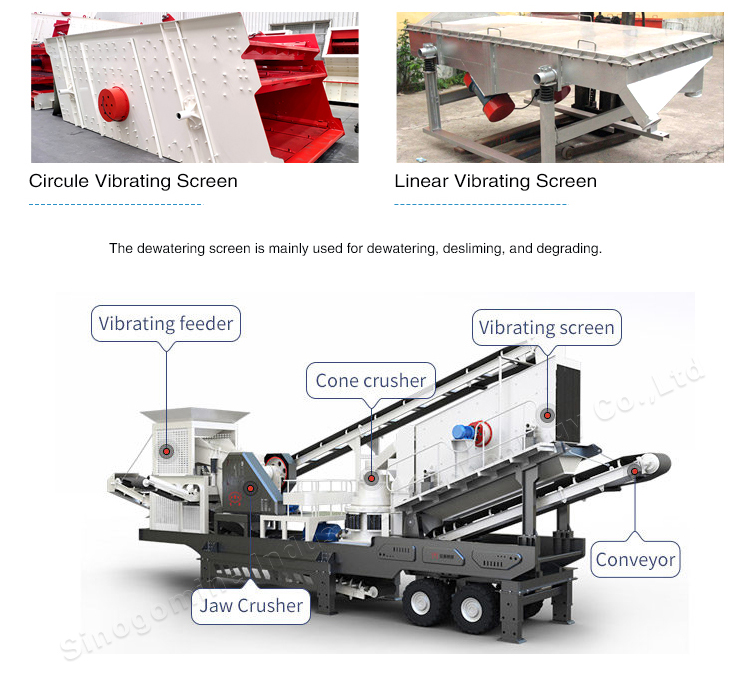

Equipment Details

Case
